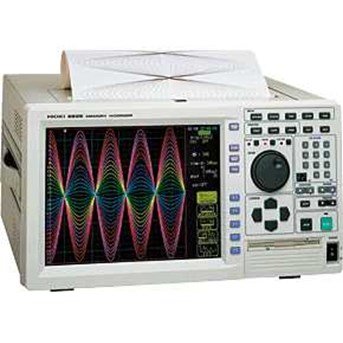

HIOKI 8826 MEMORY HiCORDER

32-channel recorder with all isolated inputs : - Simultaneous sampling, display and recording of all 32 analog and 32 logic channels - Large capacity memory of max. 16M-word Memory expandable four times (option) - High resolution of 12-bit, 1 M-sampling /second - B4-size (paper width 264 mm) wide printer - High-visibility waveforms displayed on a 10.4-inch color TFT liquid crystal display Basic specifications : Measurement ranges using ANALOG UNIT 8936 /option : 5 mV to 20 V/division, 12 ranges (normal f.s.; 20 division, wide f.s.; 24 division), resolution: 1/80 of range AC voltage for possible measurement/ display using the memory function : 335 V rms Frequency characteristic : DC to 400 kHz ±3 dB (used ANALOG UNIT 8936 /option) Time axis at memory function : 100 µs to 5 minutes/division, 20 settings (1 division =100 samples); external sampling (500 kS/s, minimum sampling period 2 µs) Measurement functions : (1)Memory recorder, (2)Recorder, (3)RMS recorder (50/60 Hz or DC only), (4)Recorder and Memory, (5)Real-time save, (6)FFT Number of input channels : Analog (up to 32 channels) + logic (32 channels standard) *using 16 units of ANALOG UNIT 8936 Memory capacity : 4 M words/ch (using 4 channels) to 500 k words/ch (using 32 channels) *Memory capacity can be expanded 4 times.(Option) Data storage : FD drive, Type III PC card slot (9727/ 9728/ 9729 PC card, 256MB to 1GB), MO drive (optional) Interfaces : SCSI (for MO drive connection, standard) Please contact HIOKI for information on compatible MO drives. Interfaces (optional, sold separately) : GP-IB: GP-IB CARD 9558 used, RS-232C: RS-232C CARD 9557 used LAN: 10BASE-T LAN CARD 9578 used Recording and display : 10.4-inch TFT color LCD, 264 mm (10.39 in) × 30 m (98.4 ft), thermal paper roll Other functions : Scaling, Waveform judgment, Waveform processing calculations, Waveform parameter calculations, Memory segmentation, Logging print, Clock, Cursor readout, Comment entry, etc. Power supply : 100 to 240 V AC (50/60 Hz) Dimensions, mass : 401 mm(15.79 in)W × 235 mm(9.25 in)H × 382 mm(15.04 in)D, 11 kg (388.0 oz) (base unit only) Accessories : Power cord(1), Recording paper(1 roll), Dust cover(1), Roll paper attachment(2), PC card protector(1), Wave viewer software(1)
